Versterkers

Hieronder vindt U een overzicht van de versterkers en subwoofermodules in ons leveringsprogramma.


miniAMP

miniAMP is a digital amplifier module designed for low power, high efficiency, stereo or multi-channel applications. Configured in Bridge Tied Load (BTL, differential drive) for stereo mode (2x20W), for 4 channels (4x10W) in Single Ended (SE) or an Hybrid configuration for 2.1ch mode (2ch SE + 1 ch BTL), intended to be used with the miniDSP and miniDIGI/miniDSP combo.

  • Bridge Tied Load (BTL) - 2x20W @8ohms/ Single Ended (SE)

  • 4x10W @4ohms / 2.1ch mode - 2x10W@4Ohm + 1x20W @8ohms

  • Full Digital amplifier, with I2S digital inputs supporting wide range of sample rate (32kHz to 192kHz)

  • Closed loop power architectecture for better power supply rejection

  • Thermal and Shortcircuit protection

  • Easily stacks on top of miniDSP series products

Download datasheet of user manual.

Prijs: € 75,=


Hypex AS2.100

De AS2.100 is een inbouw-versterker met geïntegreerde DSP voor gebruik in actieve luidsprekersystemen. De AS2.100 vormt zo de basis van, een krachtige actieve tweeweg monitor (bijvoorbeeld de Nescio), een 3 weg systeem, of een sub/sat systeem.

De AS2.100 biedt een complete 3 kanaals DSP met voldoende processor capaciteit voor filtering en correcties. Als versterker worden 2 stuks 100W van de beroemde UcD versterkers toegepast. Configuratie compleet met de meegeleverde PC software.

Een complete DSP oplossing, en 2*100W UcD versterker, samen in 1 zeer aantrekkelijk geprijsd product. Eigenlijk zonder concurentie.

Download gebruiksaanwijzing

Prijs:
€ 295,= (analoge input versie)
€ 350,= (analoge en digitale input versie)

Op aanvraag is de PSC2.400 ook leverbaar.

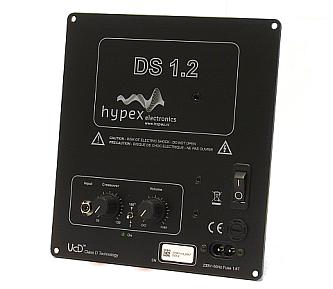

Hypex DS1.2

120Watt Class D subwoofer plate amplifier with active filtering.

TECHNICAL DATA:
Continuous output power (8 Ohm): 75 Watts (+0, -0.5dB)
Continuous output power (4 Ohm): 120 Watts (+0, -0.5dB)
Subsonic-filter: 20Hz / -3dB, 24dB/Octave
Crossover frequency subwoofer: 50Hz - 150Hz, 18dB/Octave
Bassboost: 25Hz
Bossboost level: 2dB
Damping factor: 500
Protection: Output shortcut
Crossover filtering: Linkwitz-Riley, 12dB/Octave
Input impedance RCA: 10kOhm
Dimensions: 170mm x 190mm x 60mm (W x H x D)
Weight: 2Kg

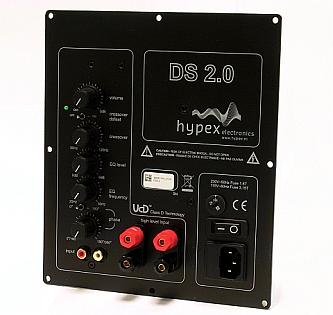

Hypex DS2.0

175Watt Class D subwoofer plate amplifier with active filtering.

TECHNICAL DATA:
Continuous output power (8 Ohm): 100 Watts (+0, -0.5dB)
Continuous output power (4 Ohm): 175 Watts (+0, -0.5dB)
Subsonic-filter: 12Hz / -3dB, 24dB/Octave
Crossover frequency subwoofer: 30Hz - 120Hz, 18dB/Octave
Bassboost: 20Hz – 50Hz
Bassboost level: 0dB - +6dB
Damping factor: 500
Protection: Output shortcut
Crossover filtering: Linkwitz-Riley, 18dB/Octave
Input impedance RCA: 10kOhm
Input impedance high level: 1kOhm
Dimensions: 190mm x 220mm x 60mm (W x H x D)
Weight: 2.5Kg

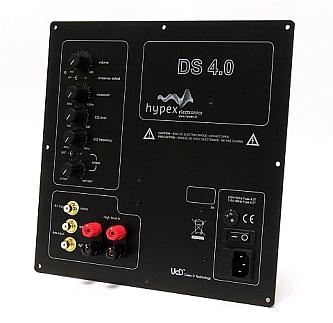

Hypex DS4.0

400Watt Class D subwoofer plate amplifier with active filtering.

TECHNICAL DATA:
Continuous output power (8 Ohm): 210 Watts (+0, -0.5dB)
Continuous output power (4 Ohm): 400 Watts (+0, -0.5dB)
Subsonic-filter: 12Hz / -3dB, 24dB/Octave
Phase: 0° - 180°, 180° - 360°
Crossover frequency subwoofer: 30Hz - 120Hz, 18dB/Octave
Bassboost: 20Hz – 50Hz
Bassboost level: 0dB - +6dB
Damping factor: 1000
Protection: Output shortcut / DC-error
Crossover filtering: Linkwitz-Riley, 18dB/Octave
Input impedance RCA: 10kOhm
Input impedance high level: 1kOhm
Dimensions: 267mm x 267mm x 70mm (W x H x D)
Weight: 4.1Kg

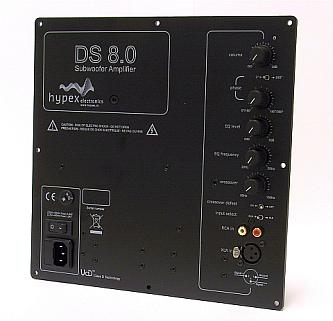

Hypex DS8.0

800Watt Class D subwoofer plate amplifier with active filtering.

TECHNICAL DATA:
Continuous output power (8 Ohm): 530 Watts (+0, -0.5dB)
Continuous output power (4 Ohm): 800 Watts (+0, -0.5dB)
Subsonnic-filter: 12Hz / -3dB, 24dB/Octave
Phase: 0° - 180°, 180° - 360°
Crossover frequency subwoofer: 50Hz - 150Hz, 18dB/Octave
Bassboost: 20Hz – 50Hz
Bossboost level: 0dB - +6dB
Damping factor: 1000
Protection: Output shortcut / DC-error
Crossover filtering: Linkwitz-Riley, 24dB/Octave
Input impedance RCA: 10kOhm
Input impedance XLR: 10kOhm
Dimensions: 267mm x 267mm x 70mm (W x H x D)
Weight: 5.75Kg

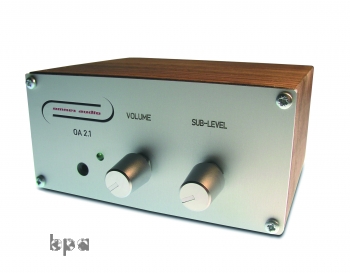

Omnes Audio Amp 2.1

Een audiofiele class-T versterker voor een sat/sub systeem met de volgende kenmerken:

  • Satelieten: 2x 15 W (4 Ω)

  • Sub Woofer: 2x 20 W (4 Ω) volume regelbaar

  • Hoogpasfilter voor de satelieten instelbaar (80/100/120/150 Hz 12dB)

  • Laagpasfilter van de subwoofer instelbaar (80/100/120/150 Hz 12dB)

    • Andere frequenties leverbaar op aanvraag

  • Variabele Bas-Boost bij 40 Hz (0/3/6dB)

  • Subsonicfilter bij 30 Hz

  • 12 V aansluiting

Wordt geleverd als 'speelklaar' pakket inclusief behuizing en 15V 3000mA voeding.

Voorlopig niet leverbaar
